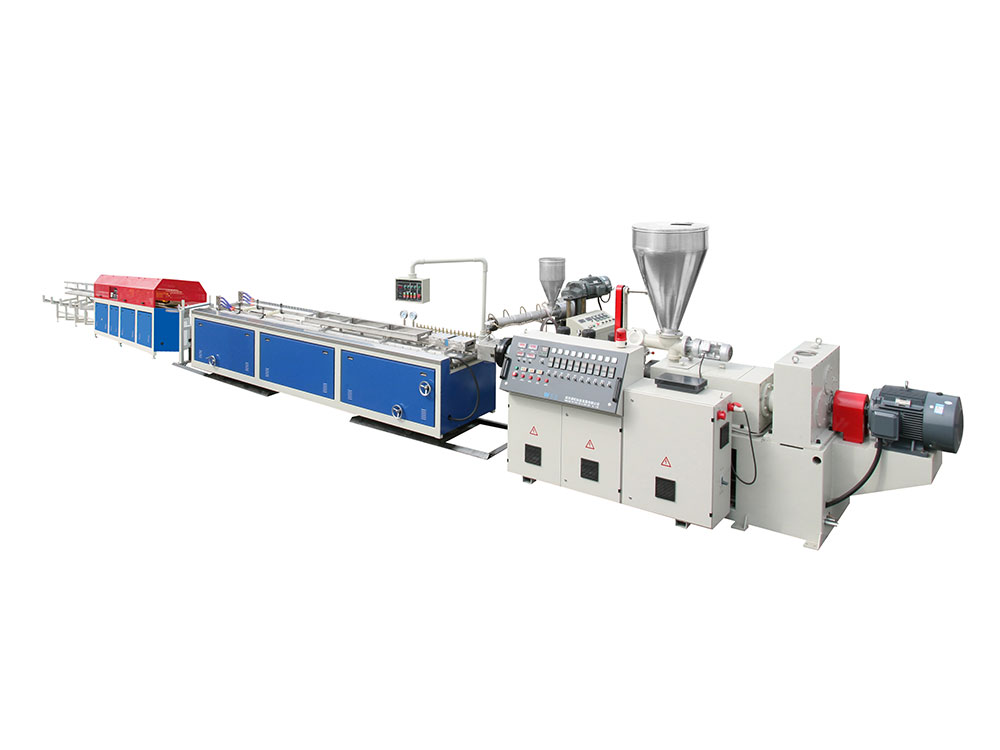

PVC wood-plastic extrusion production line
The PVC plastic-wood extrusion production line is an automated equipment used to produce PVC and natural fiber mixed profiles such as wood flour/rice hulls. It is widely used in the manufacture of durable building materials such as outdoor floors, wall panels, door and window profiles, and landscape.
产品详情
The main components include:
Extruder: The core component is commonly used as a conical twin screw extruder or a single screw extruder, which is responsible for the plasticization and extrusion of raw materials. The screw has unique design, good plasticizing effect and high production capacity.
Mold: Installed on the head of the extruder, various cross-section profiles can be formed through die heads with different structures. It is a key component for the shape accuracy of the product.
Vacuum setting table: used for setting and cooling profiles, equipped with vacuum system and water circulation system to ensure stable product size and smooth surface.
Traction machine: Pull the shaped profiles smoothly out of the production line, usually using frequency conversion speed regulation, and run synchronously with the extruder to ensure product continuity.
Cutting machine: Automatically cuts profiles according to set length and is equipped with a dust suction device to facilitate subsequent material distribution and packaging.
Stacking rack/unloading device: The cut profiles are automatically stacked for easy collection and packaging.
Electronic control system and related auxiliary equipment: Automated control across the line, including temperature control, speed regulation, pressure monitoring, etc., to improve production efficiency and product consistency.
Product parameters:
device model | screw diameter | total power | Output (KG/H) | Overall size (L x W x H)MM | weight of the whole machine |
SWMSX-1 | 45/90 | 39.8 | 40-60 | 16000×1300×2400 | 4500 |
SWMSX-2 | 50/104 | 54.8 | 60-90 | 18500×1400×2700 | 6500 |
SWMSX-3 | 65/132 | 86.7 | 70-160 | 19000×1520×2800 | 7400 |
SWMSX-4 | 80/156 | 129.7 | 250-350 | 21000×1850×2900 | 9400 |
Equipment characteristics:
Efficient and energy-saving: The optimized screw structure has good plasticizing effect, high production capacity, low energy consumption, and improves production efficiency.
High degree of automation: equipped with automatic feeding, sizing, traction, cutting and stacking systems to reduce manual intervention and improve production stability and efficiency.
High temperature control accuracy: Imported temperature control instruments are used to achieve high-precision temperature control and ensure the quality of material extrusion molding.
Easy operation and convenient maintenance: the whole machine is compact and reasonable in design, friendly in operating interface, and simple in maintenance.
Excellent product performance: the wood-plastic products produced have beautiful appearance, good weather resistance, moisture and insect resistance, are not easy to deform, and have long service life.
Strong adaptability: It can replace different molds and produce a variety of profiles to meet diverse needs and support on-demand customization.
Good environmental performance: using recycled materials, the production process is environmentally friendly, and the products can be recycled.
Product advantages:
The wood-plastic products produced by the PVC wood-plastic extrusion production line equipment have the advantages of good weather resistance, moisture and insect resistance, difficulty in deformation, long service life, beautiful appearance, environmental protection and recyclability.
Application scenarios:
The wood-plastic products produced by PVC wood-plastic extrusion production line equipment are widely used in outdoor garden landscapes, decorative wall panels, outdoor floors, guardrail columns, plastic wood-pavilions, garden guardrails, enclosure fences, leisure benches, tree ponds, flower boxes, indoor and outdoor door and window profiles, ceilings, skirting lines, integral cabinets, wardrobes, exterior wall hanging panels, road signs, transportation trays and other scenes.
